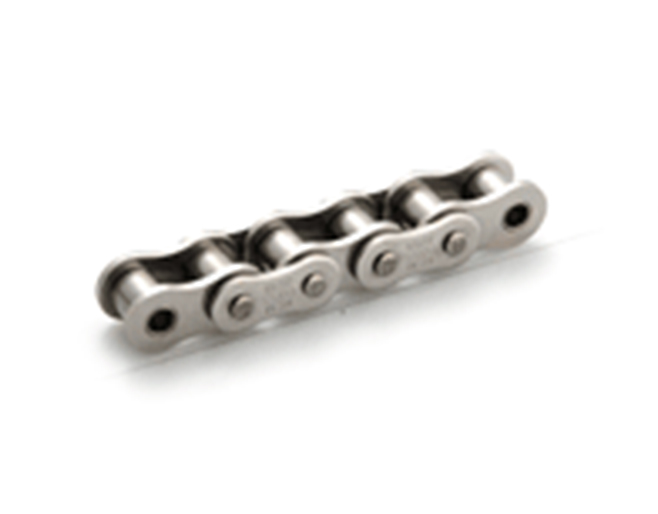

Strengthen Stainless Steel (AS) Roller Chain

To realize this product, the pins and rollers of SS chain have been replaced with those made of precipitation hardened stainless steel to improve its allowable load.
Its maximum allowable load is 1.5 times larger than SS chain. Please use this in case an SS chain will be short of allowable load.
Its corrosion-resistance is slightly lower than SS chain. Its operating temperature is -20ﾟC to +400ﾟC.
（Note: This product has magnetism since it contains precipitation hardened stainless steel.

Chain number： KCM 40 AS, 50 AS, 60 AS, 80 AS

Products in the Strengthen Stainless Steel (AS) Roller Chain family

KCM 80AS

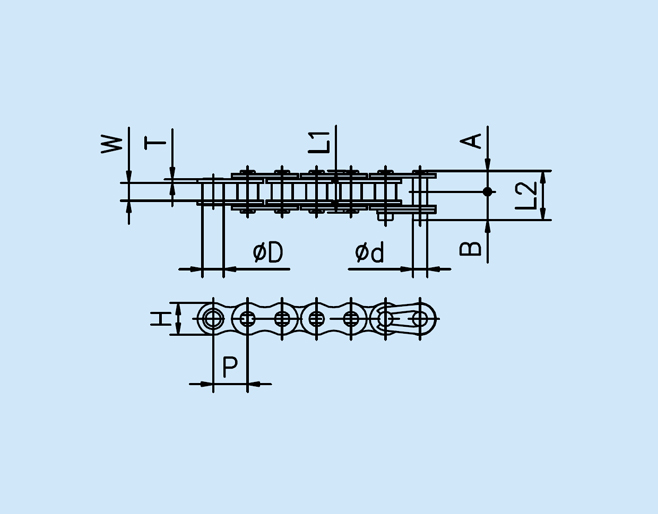

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57

      A: 2.28
      B: 3.1
      L1: 4.56
      L2: 5.38

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 2.65 (270)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134

Tính chất vật liệu

Dimension, weight, and connecting links are the
same as those of the SS chain.
For offset link, only two-pitch type is available.
AS chain with attachment is available.

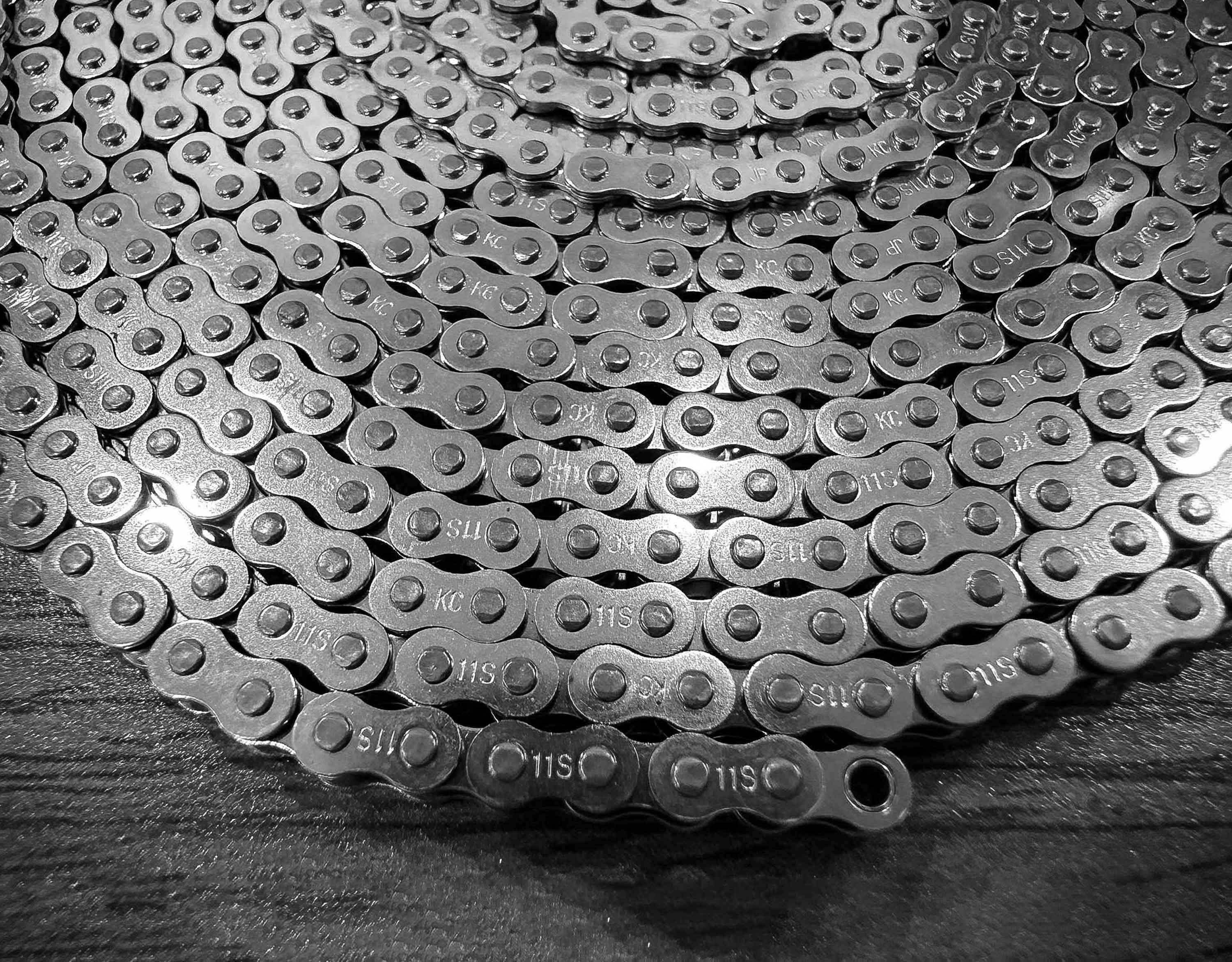

KCM 11SS

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57

      A: 2.28
      B: 3.1
      L1: 4.56
      L2: 5.38

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 0.05（5）
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134

Tính chất vật liệu

The dimention with an * shows as bush diameter.
Connecting link of 11SS is open clip type and both sides rivet.
We do not supply Offset link for 11SS.
11 SS stainless chain is lubricated.

KCM 60AS

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57

      A: 2.28
      B: 3.1
      L1: 4.56
      L2: 5.38

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 1.57(160)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134

Tính chất vật liệu

Dimension, weight, and connecting links are the
same as those of the SS chain.
For offset link, only two-pitch type is available.
AS chain with attachment is available.

KCM 40AS

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57

      A: 2.28
      B: 3.1
      L1: 4.56
      L2: 5.38

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 0.69 (70)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134

Tính chất vật liệu

Dimension, weight, and connecting links are the
same as those of the SS chain.
For offset link, only two-pitch type is available.
AS chain with attachment is available.

KCM 50AS

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57

      A: 2.28
      B: 3.1
      L1: 4.56
      L2: 5.38

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 1.03(105)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134

Tính chất vật liệu

Dimension, weight, and connecting links are the
same as those of the SS chain.
For offset link, only two-pitch type is available.
AS chain with attachment is available.
